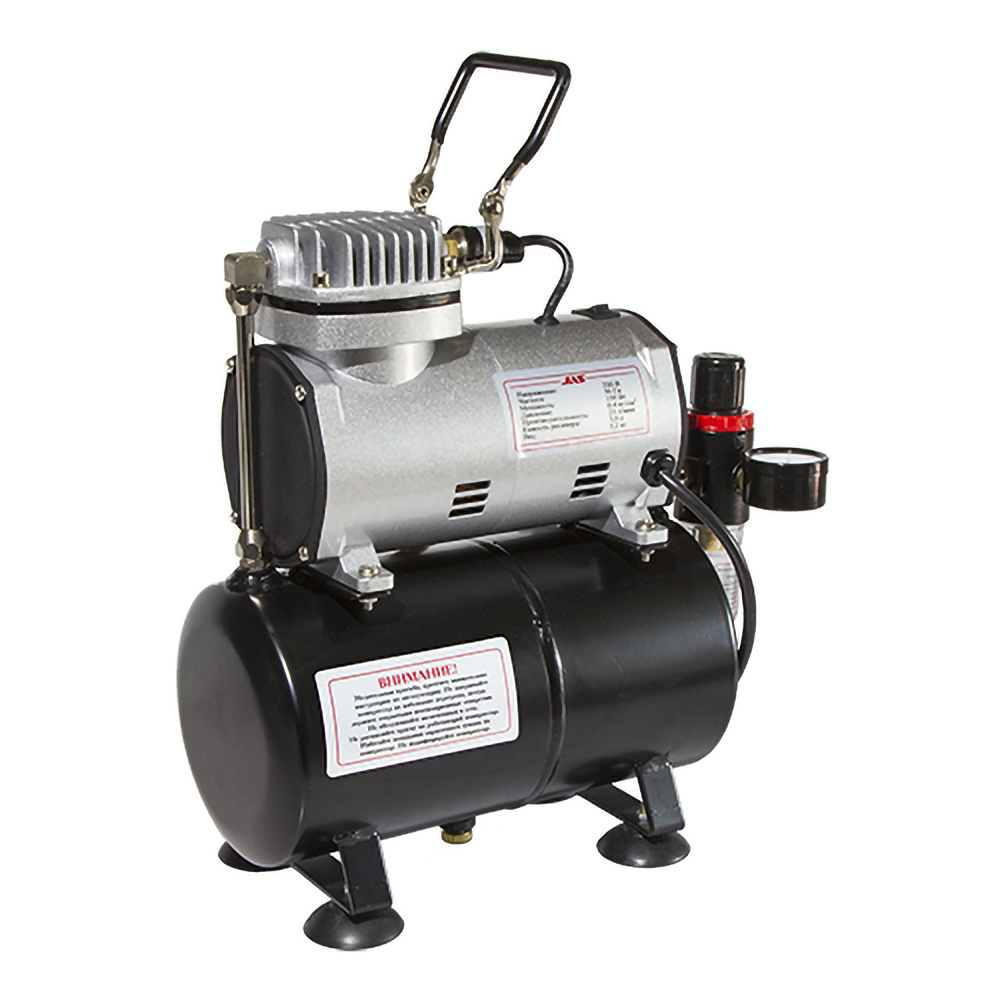

1203 Jas Compressor, with pressure regulator, automation, receiver

1203 Jas Compressor, with pressure regulator, automation, receiver

82 $ *

Inform

* price for retail store customers

4 52

Vendor code: 1203

Manufacturer: JAS

Availability: Not available

1203 Jas Compressor, with pressure regulator, automation, receiver

Additional Information

the Specialized compressor for work with the airbrush, has an opportunity of adjustment of pressure and the automatic regulator of pressure switching off the compressor when it is not used. The working pressure is stabilized by the receiver.

Specifications:
Voltage: 220-240 Volts
Frequency: 50 Hz
Power: 150 Watts
Automatic pressure adjustment:
Lower limit 3 kg/cm2
Upper limit 4 kg/cm2
Manual adjustment of outlet pressure:
Lower limit 0 kg/cm2
Upper limit 4 kg/cm2
Maximum pressure: 4 kg/cm2
Performance: 23 l/min
receiver Capacity: 3 l
Outlet pipe size: G1/8",
Weight: 5.2 kg
Size: 585x335x330 mm


Give feedback






Additionally, we recommend also purchasing

Vendor code: 3011
3011 Jas Splitter, 1 inlet (nut), 2 outlets (fitting), metal
3011 Jas Splitter, 1 inlet (nut), 2 outlets (fitting), metal

2$

Vendor code: 1408
1408 Jas PVC Hose in fabric braid M5-0.5 x G1/8, length 3 meters
1408 Jas PVC Hose in fabric braid M5-0.5 x G1/8, length 3 meters

3$

Not available
Vendor code: 1405
1405 Jas airbrush Hose in textile braid, W1/4-40xg1/8, length 1.8 meters
1405 Jas airbrush Hose in textile braid, W1/4-40xg1/8, length 1.8 meters

3$

Inform
Vendor code: 1406
1406 Jas airbrush Hose in textile braid, W1/4-40xg1/8, length 3 meters
1406 Jas airbrush Hose in textile braid, W1/4-40xg1/8, length 3 meters

3$

Vendor code: 1801
1801 Jas Pressure Gauge
1801 Jas Pressure Gauge

4$

Vendor code: 8102
8102 Jas Adapter fitting 1/8
8102 Jas Adapter fitting 1/8"- fitting 1/4"

1$

Vendor code: 8106
8106 Jas Adapter fitting 1/4
8106 Jas Adapter fitting 1/4"- M12x1 fitting, L-shaped

2$

Vendor code: 8491
8491 Jas Stopper kompressionnogo rings for compressors 1202, 1203
8491 Jas Stopper kompressionnogo rings for compressors 1202, 1203

1$

Vendor code: 8105
8105 Jas Adapter fitting 1/4
8105 Jas Adapter fitting 1/4"- fitting 1/4"

1$

Vendor code: 8470
8470 Jas Cylinder to compressors 1202, 1203, 1205, 1206, 1208
8470 Jas Cylinder to compressors 1202, 1203, 1205, 1206, 1208

4$

Vendor code: 8050
8050 Jas block head o-ring to compressors 1202, 1203
8050 Jas block head o-ring to compressors 1202, 1203

1$

Vendor code: 8110
8110 Jas Adapter nut M12x1 - tube - nut M12x1
8110 Jas Adapter nut M12x1 - tube - nut M12x1

3$

Vendor code: 8450
8450 Jas rubber Foot to compressors 1202, 1203, 1205
8450 Jas rubber Foot to compressors 1202, 1203, 1205

1$

Vendor code: 8104
8104 Jas l-shaped Adapter: connection Type: 1. Nut 1/4
8104 Jas l-shaped Adapter: connection Type: 1. Nut 1/4" 2. Fitting 1/4"

2$

Not available
Vendor code: 8053
8053 Jas Sealing ring connecting tube heads to compressors 1203, 1205, 1206, 1208
8053 Jas Sealing ring connecting tube heads to compressors 1203, 1205, 1206, 1208

0$

Inform
Vendor code: 8051
8051 Jas cylinder o-ring to compressors 1202, 1203, 1205, 1206, 1208
8051 Jas cylinder o-ring to compressors 1202, 1203, 1205, 1206, 1208

1$

Vendor code: 8460
8460 Jas cylinder Compression ring
8460 Jas cylinder Compression ring

2$

Vendor code: 8602
8602 JAS Switch to compressor 1202, 1203
8602 JAS Switch to compressor 1202, 1203

1$

Vendor code: 8293

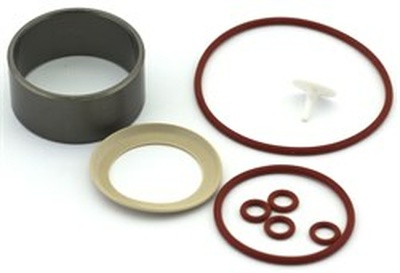

8293 JAS Set of consumables for compressor maintenance 1203
