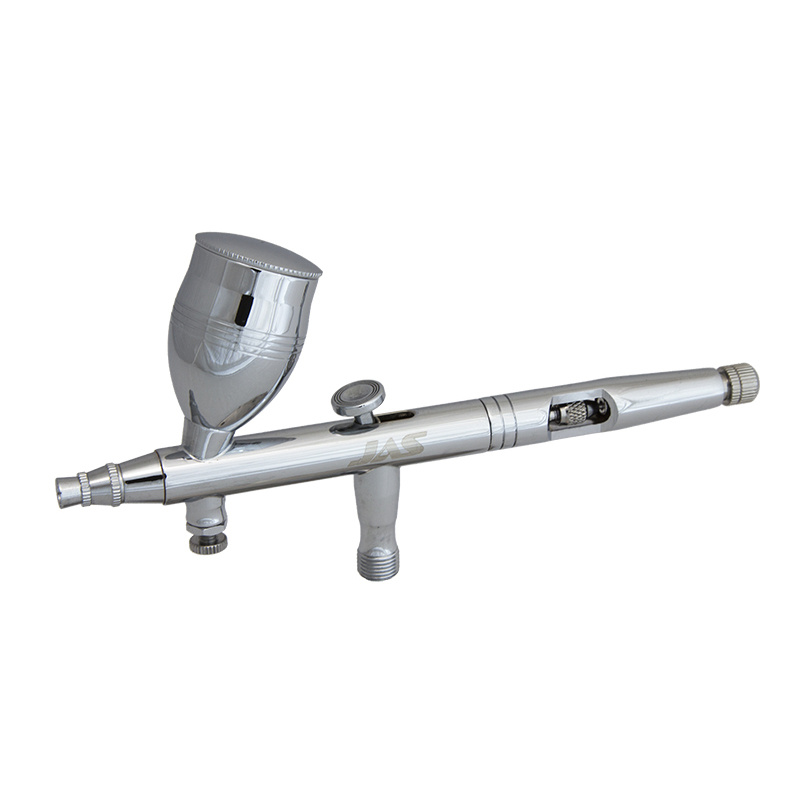

1127 Airbrush JAS wide range of applications, the presence of a set of interchangeable containers for paint allows you to produce different, in terms of work, the presence of Air control allows you to adjust the pressure of the air supplied to the airbrus
25 $ *
* price for retail store customers
Additional Information
Airbrush for a wide range of applications. The presence in the
set of interchangeable containers for paint allows you to produce
different in scope of work. The presence of Air control allows you to adjust
the pressure of the supplied air in the airbrush.
Technical specifications.
control Type: dual, independent
Type of mixing: internal
Feed paint: top
nozzle Diameter: 0.3 mm
capacity paint: 2 ml, 5 ml, 13 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes
package includes: airbrush, containers for paint (1 PCs x 2 ml, 1 PCs. x 5 ml x 1 x 13 ml), pipette, wrench, manual, box, blank warranty card.
Type of mixing: internal
Feed paint: top
nozzle Diameter: 0.3 mm
capacity paint: 2 ml, 5 ml, 13 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes
package includes: airbrush, containers for paint (1 PCs x 2 ml, 1 PCs. x 5 ml x 1 x 13 ml), pipette, wrench, manual, box, blank warranty card.
Airbrush unit: scheme and details:
| 1. | Diffuser |
| 2. | diffuser Housing |
| 3. | Rubber seal |
| 4. | Nozzle |
| 5. | Rubber seal |
| 6. | Rubber seal |
| 7. | paint Tank |
| 8. | Lever< / span> |
| 9. | needle control Lever |
| 10. | needle Gasket |
| 11. | Locking sleeve |
| 12. | Locking sleeve |
| 13. | needle Guide with collet < span> |
| 14. | sleeve Locking screw |
| 15. | needle Return spring |
| 16. | box springs< / span> |
| 17. | Clamping nut |
| 18. | Needle |
| 19. | Rubber seal |
| 20. | rear Protective cover |
| 21. | paint flow Regulator |
| 22. | Rubber seal |
| 23. | air valve Body |
| 24. | Rubber seal |
| 25. | Air valve |
| 26. | Spring |
| 27. | valve Washer |
| 28. | Air Control Assembly |
| 29. | Rubber seal |
| 30. | air Control Housing |
| 31. | Rubber seal |
| 32. | air Control Adjusting screw |
| 33. | connector Nut |
| 34. | Rubber seal |
| 35. | Connector |
| 36. | nozzle change Key |
| 37. | paint tank Cover |
| 38. | paint Container |
| 39. | paint Container |
Компрессоры предназначены для аэрографии в toмашних условиях. Not предназначено для использования в промышленных целях (производственных нужд, строительных, ремонтных и fromделочных рабfrom, автосервисов).
