1208 JAS a Specialized compressor for airbrush manual pressure control on the output.

1208 JAS a Specialized compressor for airbrush manual pressure control on the output.

102 $ *

Inform

* price for retail store customers

5 7

Vendor code: 1208

Manufacturer: JAS

Availability: Not available

1208 JAS a Specialized compressor for airbrush manual pressure control on the output.

Additional Information

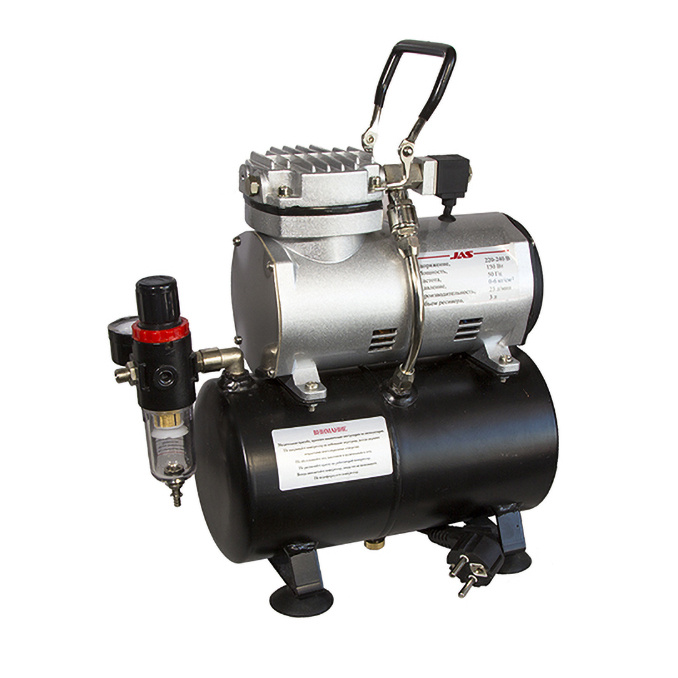

Dedicated airbrush compressor with manual outlet pressure adjustment. It has an automatic pressure regulator that switches off the compressor when not in use and two operating modes, allowing it to be used with a miniature tool. The working pressure is stabilized by the receiver.

Technical specifications.

Voltage: 220 Volts
Power: 150 Watts
Frequency: 50 Hertz
Automatic adjustment of outlet pressure.
the First mode of operation.
Lower limit: 3 kg/cm2
Upper limit: 6 kg/cm2
Second operating mode.
Upper limit: 6 kg/cm2
Manual adjustment of outlet pressure.
Lower limit: 0 kg/cm2
Upper limit: 6 kg/cm2
Maximum pressure: 6 kg/cm2
Performance: 23 l/min.
Noise level: dB
outlet pipe Size: G1/8"
Weight: 5.9 kg
Size: 325x145x315 mm
