Additional Information
Airbrush wide range of applications, the presence of Air control allows you to adjust the pressure supplied
air on the airbrush.
Technical specifications.
control Type: dual, independent
Type of mixing: internal
Feed paint: top
nozzle Diameter: 0.3 mm
capacity paint: 9 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes
package includes: airbrush, wrench, manual, box, blank warranty card.
Type of mixing: internal
Feed paint: top
nozzle Diameter: 0.3 mm
capacity paint: 9 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes
package includes: airbrush, wrench, manual, box, blank warranty card.
Airbrush unit: scheme and details:
| 1. | Diffuser |
| 2. | diffuser Housing |

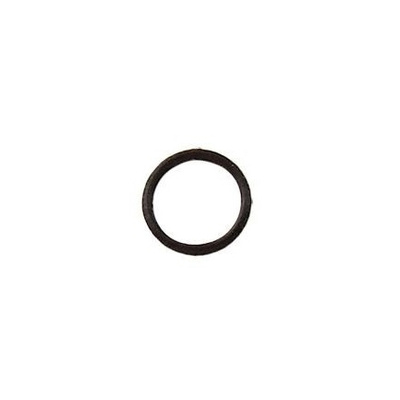

| 3. | Rubber seal |
| 4. | Nozzle |
| 5. | Rubber seal |
| 6. | Body spray< / span> |
| 7. | Rubber seal |
| 8. | Rubber seal |
| 9. | paint Container with cover |
| 10. | Lever< / span> |
| 11. | needle control Lever |
| 12. | needle Gasket |
| 13. | Locking sleeve |
| 14. | Locking sleeve |
| 15. | needle Guide with collet < span> |
| 16. | sleeve Locking screw |
| 17. | needle Return spring |
| 18. | box springs< / span> |
| 19. | Clamping nut |
| 20. | Needle |
| 21. | Rubber seal |
| 22. | rear Protective cover |
| 23. | paint flow Regulator |
| 24. | Rubber seal |
| 25. | Air valve Assembly |
| 26. | Rubber seal |
| 27. | air valve Body |
| 28. | Rubber seal |
| 29. | Air valve |
| 30. | Spring |
| 31. | valve Washer |
| 32. | Air Control Assembly |
| 33. | Rubber seal |
| 34. | air Control Housing |
| 35. | Rubber seal |
| 36. | air Control Adjusting screw |
| 37. | connector Nut |
| 38. | Rubber seal |
| 39. | Connector |
| 40. | nozzle change Key |
Компрессоры предназначены для аэрографии в toмашних условиях. Not предназначено для использования в промышленных целях (производственных нужд, строительных, ремонтных и fromделочных рабfrom, автосервисов).
