Additional Information

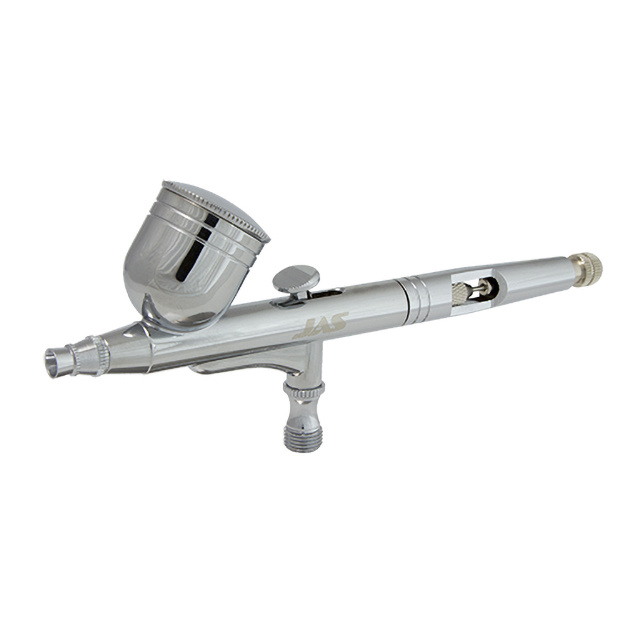

Airbrush wide range of applications.
Technical specifications.
control Type: dual, independent
Type of mixing: internal
Feed paint: top
nozzle Diameter: 0.3 mm
capacity paint: 7ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes
package includes: airbrush, eyedropper, key, manual, box, blank warranty card.
Type of mixing: internal
Feed paint: top
nozzle Diameter: 0.3 mm
capacity paint: 7ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes
package includes: airbrush, eyedropper, key, manual, box, blank warranty card.

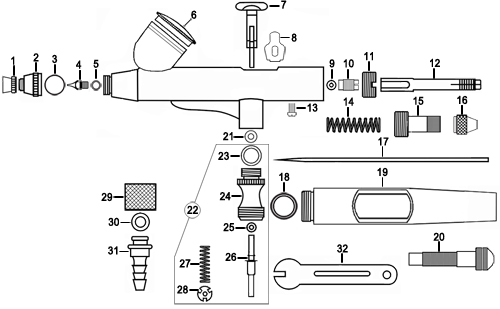

| 1. | Diffuser |
| 2. | diffuser Housing |
| 3. | Rubber seal |
| 4. | Nozzle |
| 5. | Rubber seal |
| 6. | paint Container with cover |
| 7. | Lever< / span> |
| 8. | needle control Lever |
| 9. | needle Gasket |
| 10. | Locking sleeve |
| 11. | Locking sleeve |
| 12. | needle Guide with collet < span> |
| 13. | sleeve Locking screw |
| 14. | needle Return spring |
| 15. | box springs< / span> |
| 16. | Clamping nut |
| 17. | Needle |
| 18. | Rubber seal |
| 19. | rear Protective cover |
| 20. | paint flow Regulator |
| 21. | Rubber seal |
| 22. | Air valve Assembly |
| 23. | Rubber seal |
| 24. | air valve Body |
| 25. | Rubber seal |
| 26. | Air valve |
| 27. | Spring |
| 28. | valve Washer |
| 29. | connector Nut |
| 30. | Rubber seal |
| 31. | Connector |
| 32. | nozzle change Key |
Компрессоры предназначены для аэрографии в toмашних условиях. Not предназначено для использования в промышленных целях (производственных нужд, строительных, ремонтных и fromделочных рабfrom, автосервисов).
