Additional Information

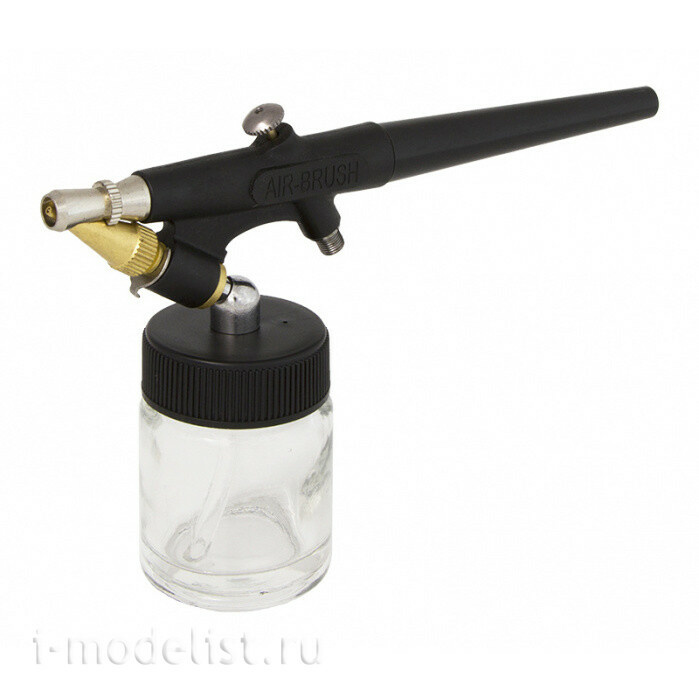

entry-level Airbrush, as well as for the application of the background and soil. Plastic case.
Technical specifications.
control Type: single
Type of mixing: outdoor
Feed paint: bottom
nozzle Diameter: 0.8 mm
the Volume of the container under the paint: 22 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: M5-0,5
Limiter ink supply: no

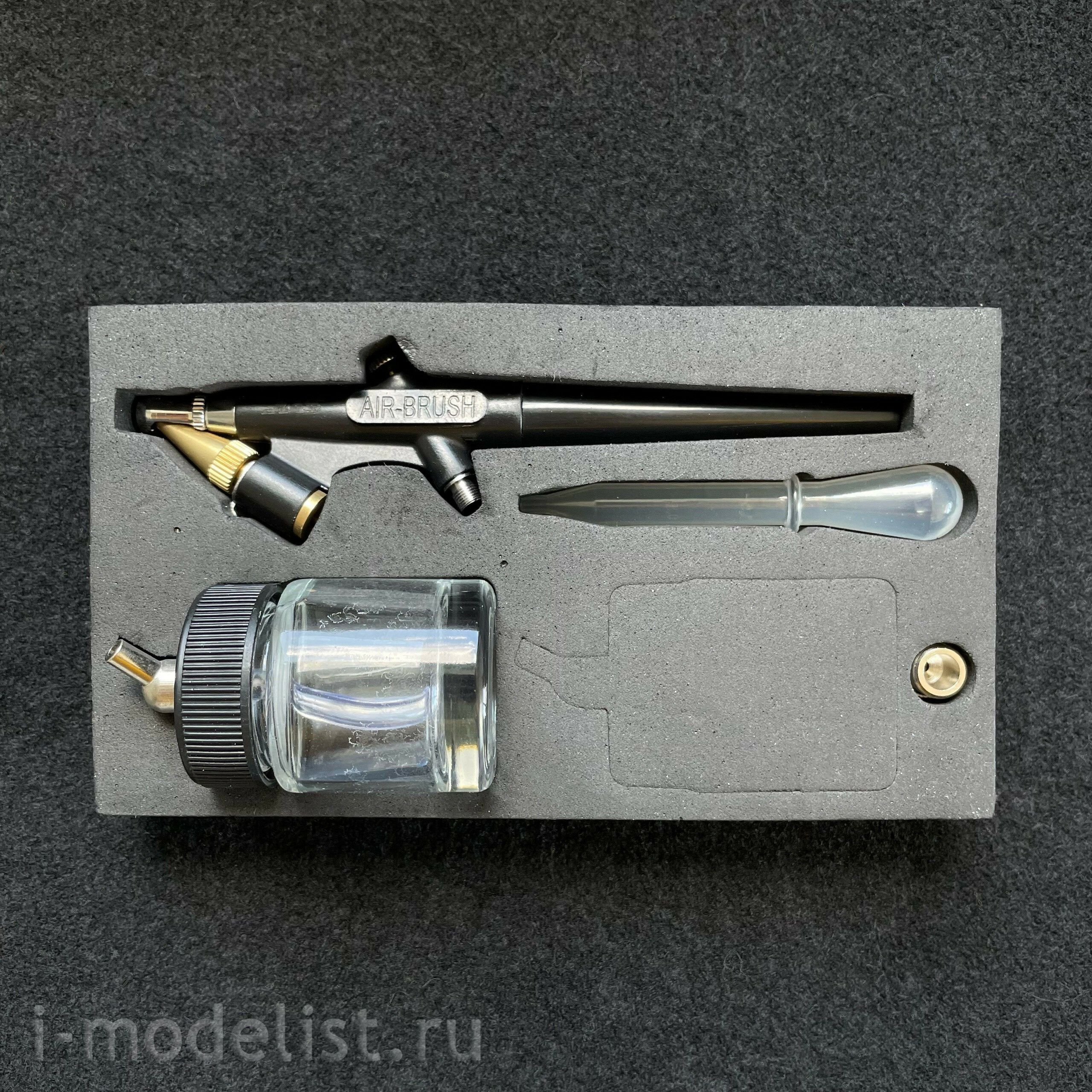

package includes: airbrush, containers for paint (2 x 22 ml), pipette, adapter to cylinder, manual, box, blank warranty card.
Type of mixing: outdoor
Feed paint: bottom
nozzle Diameter: 0.8 mm
the Volume of the container under the paint: 22 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: M5-0,5
Limiter ink supply: no
package includes: airbrush, containers for paint (2 x 22 ml), pipette, adapter to cylinder, manual, box, blank warranty card.
Airbrush unit: scheme and details:
| 1. | Diffuser |
| 2. | Rubber seal |
| 3. | diffuser Housing |
| 4. | airbrush Body |
| 5. | Lever< / span> |
| 6. | rear Protective cover |
| 7. | Nozzle Assembly |
| 8. | paint flow Regulator |
| 9. | nozzle Lock |
| 10. | Rubber seal |
| 11. | Nozzle |
| 12. | air cylinder Nozzle |
| 13. | paint tank Cover with adapter |
| 14. | paint Container |
| 15. | paint tank Cover |
| 16. | paint Container |
Компрессоры предназначены для аэрографии в toмашних условиях. Not предназначено для использования в промышленных целях (производственных нужд, строительных, ремонтных и fromделочных рабfrom, автосервисов).
