5100 Sbmodel Portable workstation Modeler

111 $ *

Inform

* цена для розничных клиентов магазина

3 12

Vendor code: 5100

Manufacturer: SVmodel

Availability: Not available

Additional Information

a Set of parts for self-Assembly.

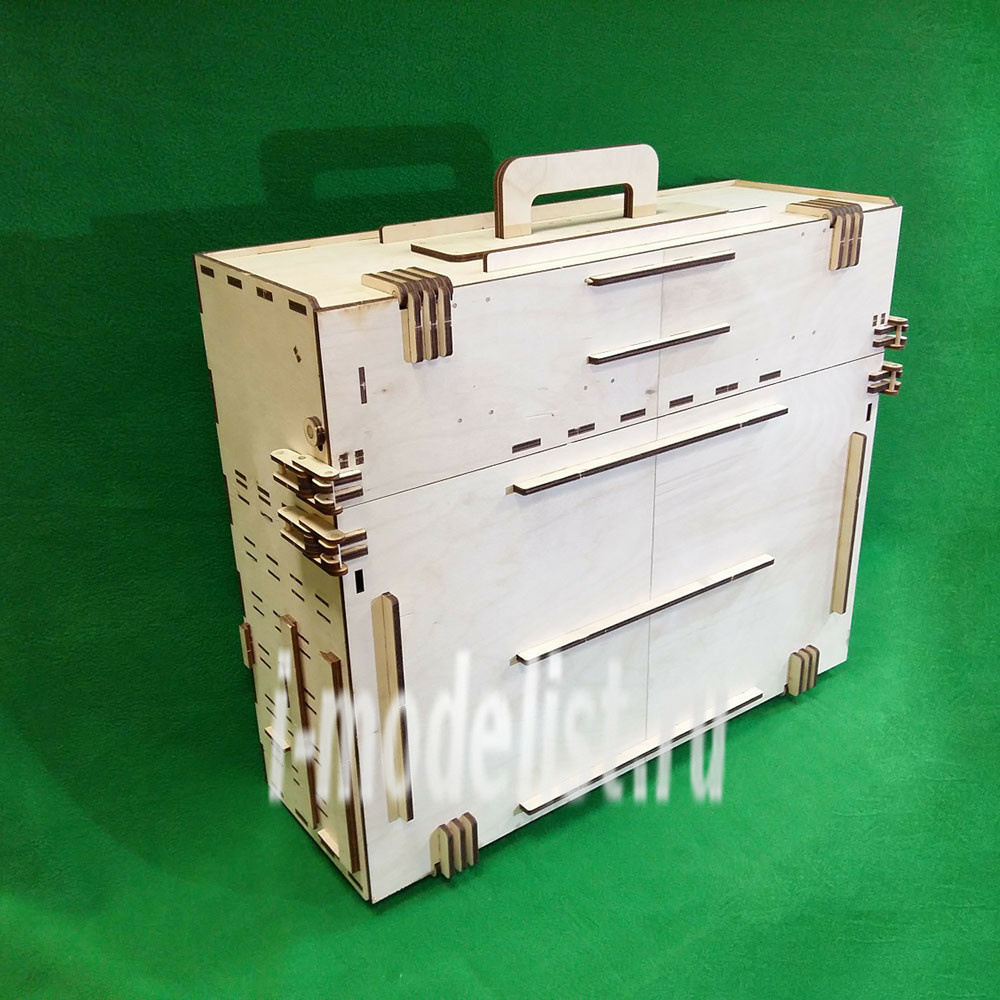

In the folded (transport) position is a suitcase with a handle for carrying the size of 600x500x200 mm. Unfold: the narrow half of the lid leans up and is fixed on the brackets, it has a built-in backlight and a removable pencil case for long slats (up to 520 mm). The wide lower half of the cover in the unfolded position turns into a table surface with dimensions of 600x350 mm. There is a coordinate marking on the table.

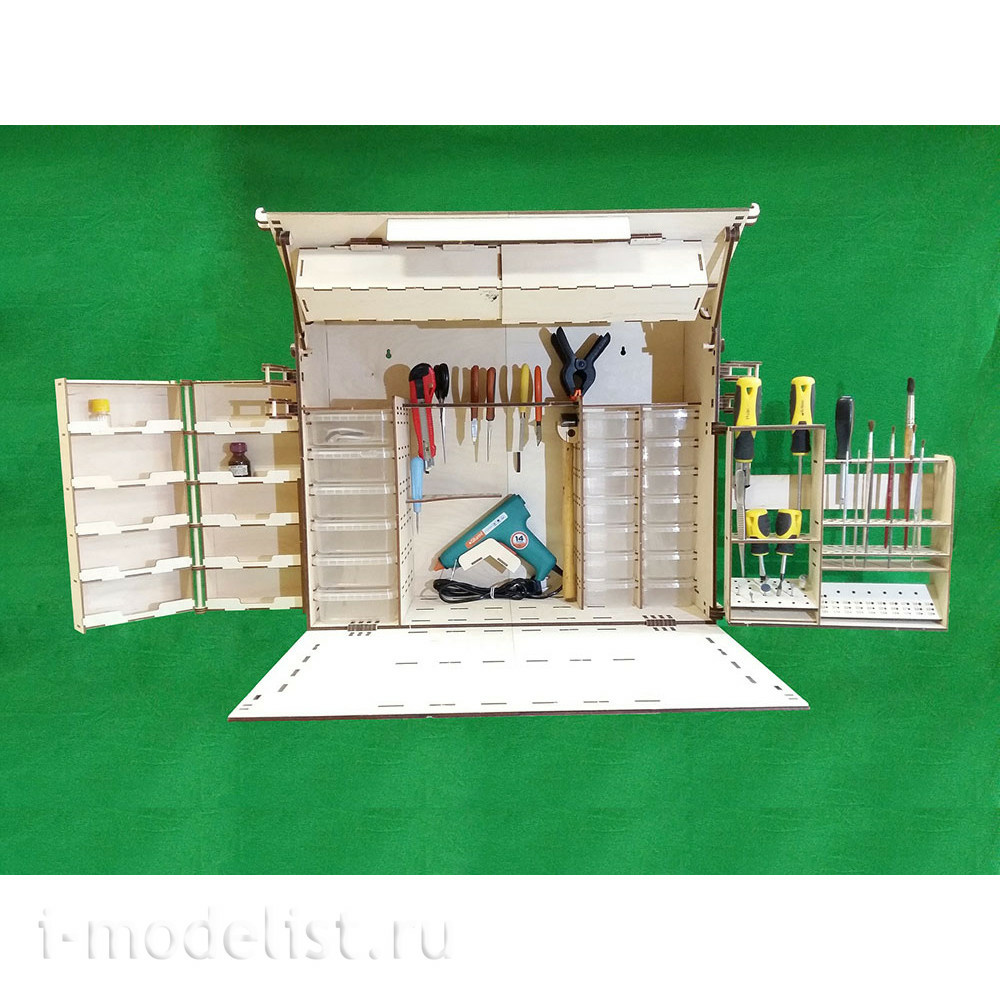

Inside the suitcase - two large modules: 1) a compartment for cans of paint - depending on the diameter of the latter, you can place more than 50 jars; 2) a compartment for the core tool - 17 cells for screwdrivers of different sizes; 21 cells for files; 32 cells for brushes; 24 cells for boron-nozzles; 36 cells for drills, and the cells are marked from 1 mm to 4 mm in increments of 0.1 mm.

Also inside the suitcase there are two more panels for the tool - pliers, side cutters, screwdrivers, etc. Suspensions for a hammer, caliper and glue gun (or a small screwdriver).

And of course, retractable transparent plastic trays - 6 large (175x110x50 mm) and 14 small (105x75x40 mm). Above the trays - two shelves.

the Workplace can be hung up on a wall (in a back wall mounting apertures are provided), and the folding desktop to fix on slings which go in a set.

Dimensions in folded (transport) position - 600x500x200 mm.

Dimensions in the working (unfolded) position - 1230h550h600 mm.

desktop Size - 600x350 mm.

illumination Lamp (LED) with switch and power cord included.

the Material of the outer casing is 6 mm plywood, all bearing elements are reinforced with stiffeners.

Pre-Assembly and gluing required. The workplace consists of more than four hundred parts.

Weight 8.4 kg.

Comes in two boxes.
