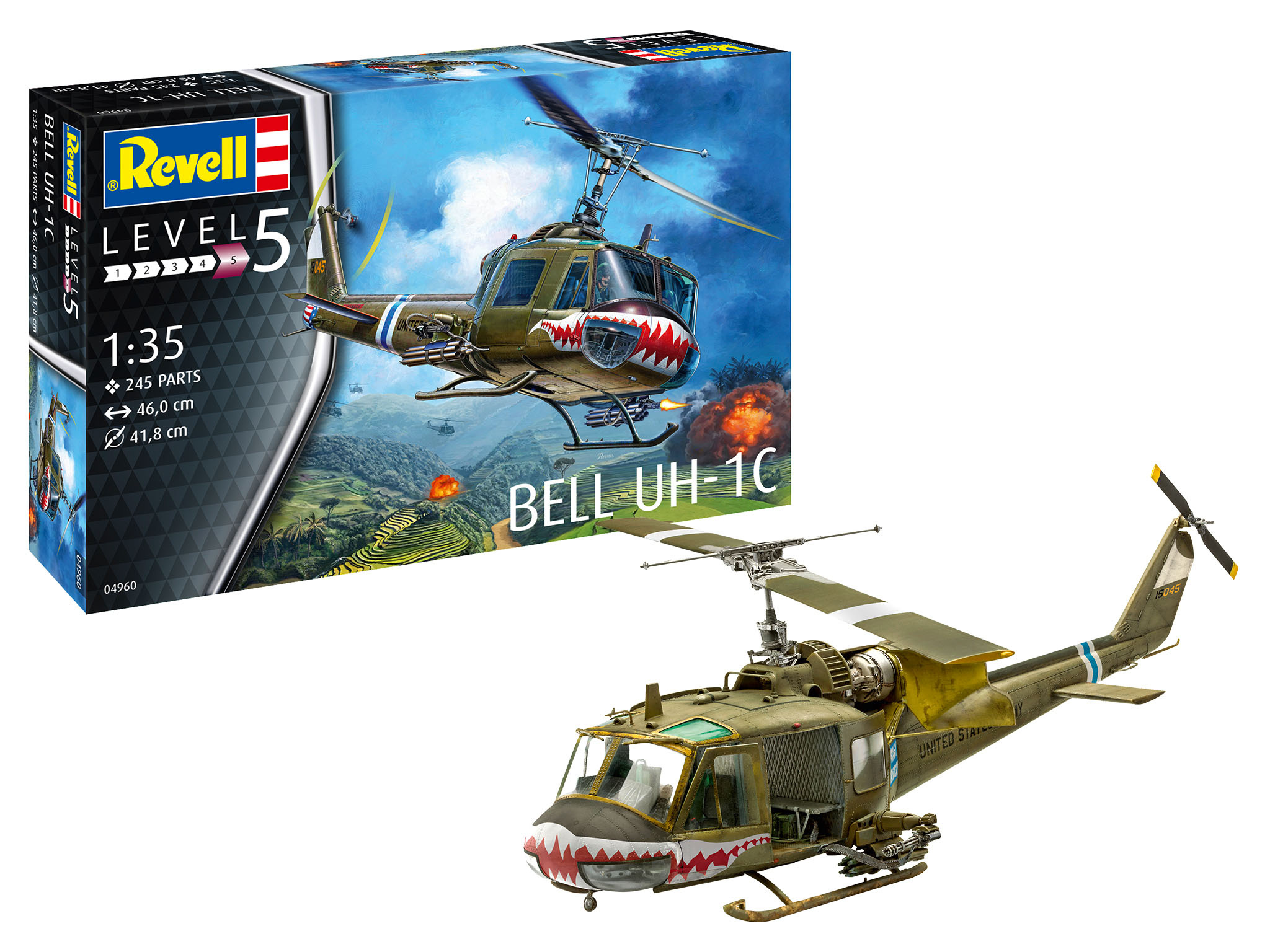

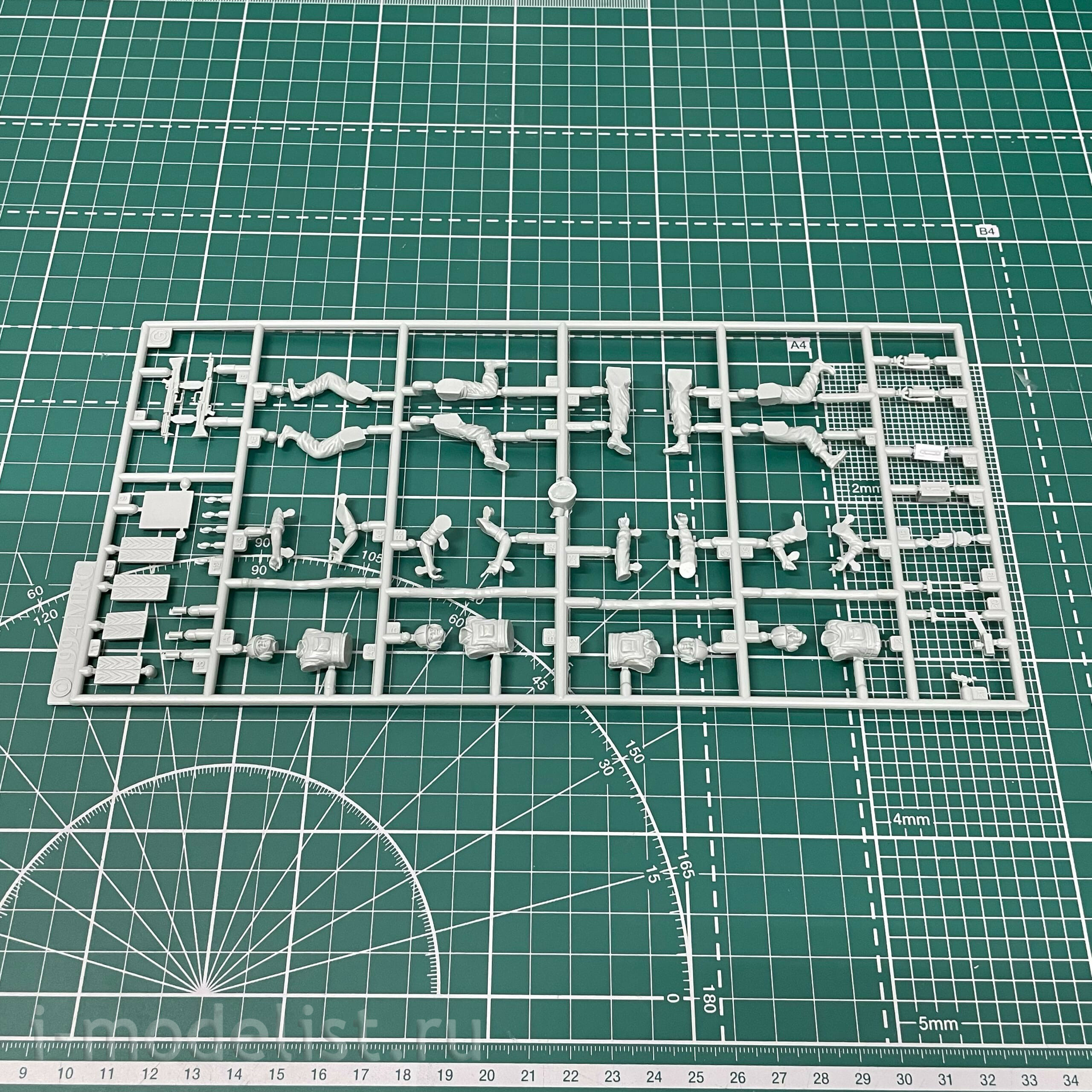

04960 Revell 1/35 Bell UH-1C

Additional Information

UH-1 Iroquois is a multi-purpose military transport single-rotor helicopter with tail rotor.

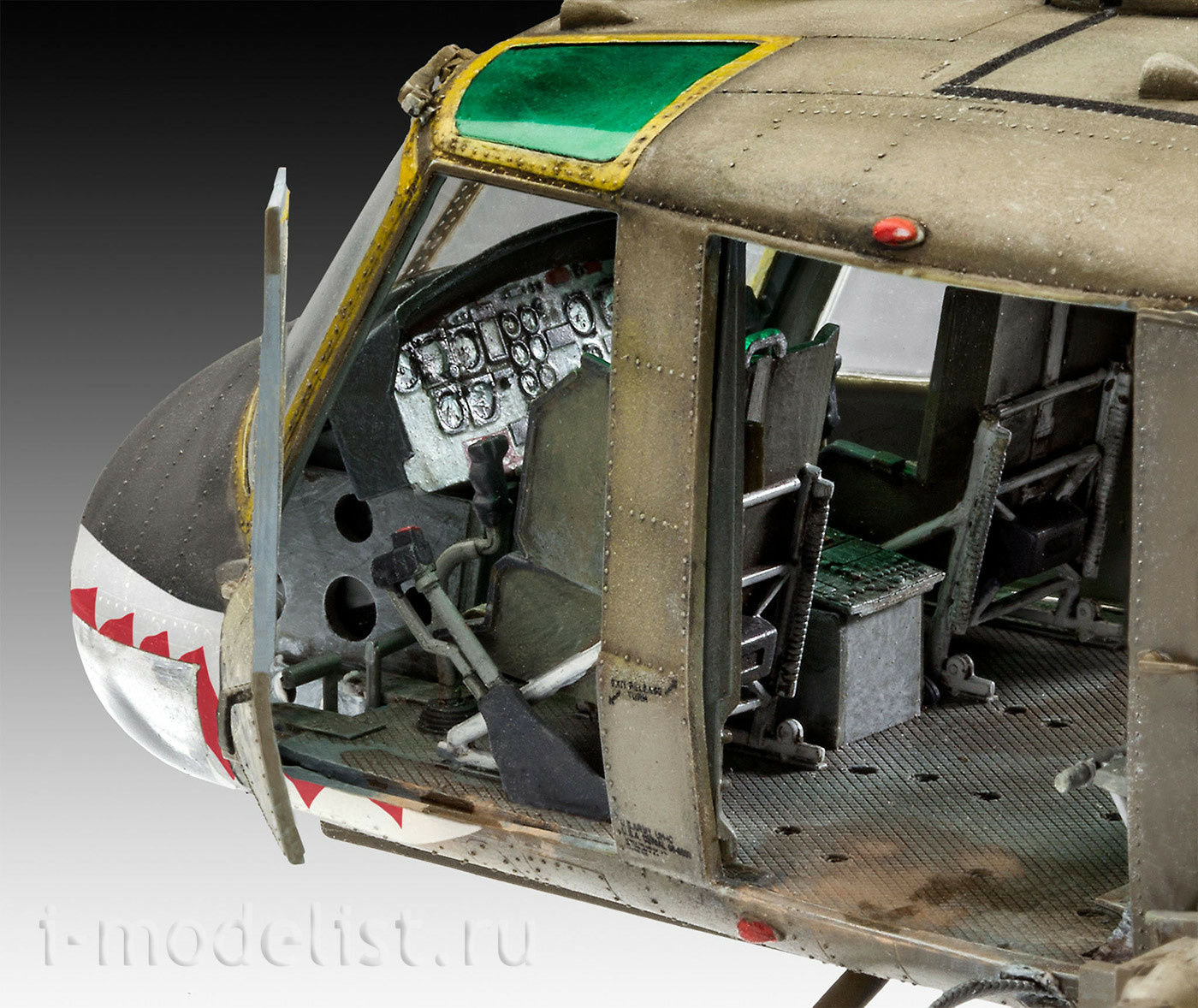

the Fuselage is semi-monocoque structure, in front of the cabin is placed for two pilots sitting side by side. Behind the cab is a compartment for the payload. At the bottom of the fuselage there is a loop for the carriage of goods on the external suspension. As landing devices, steel skis are used, on which inflatable floats can be installed to ensure the take-off and landing of the helicopter on the water.

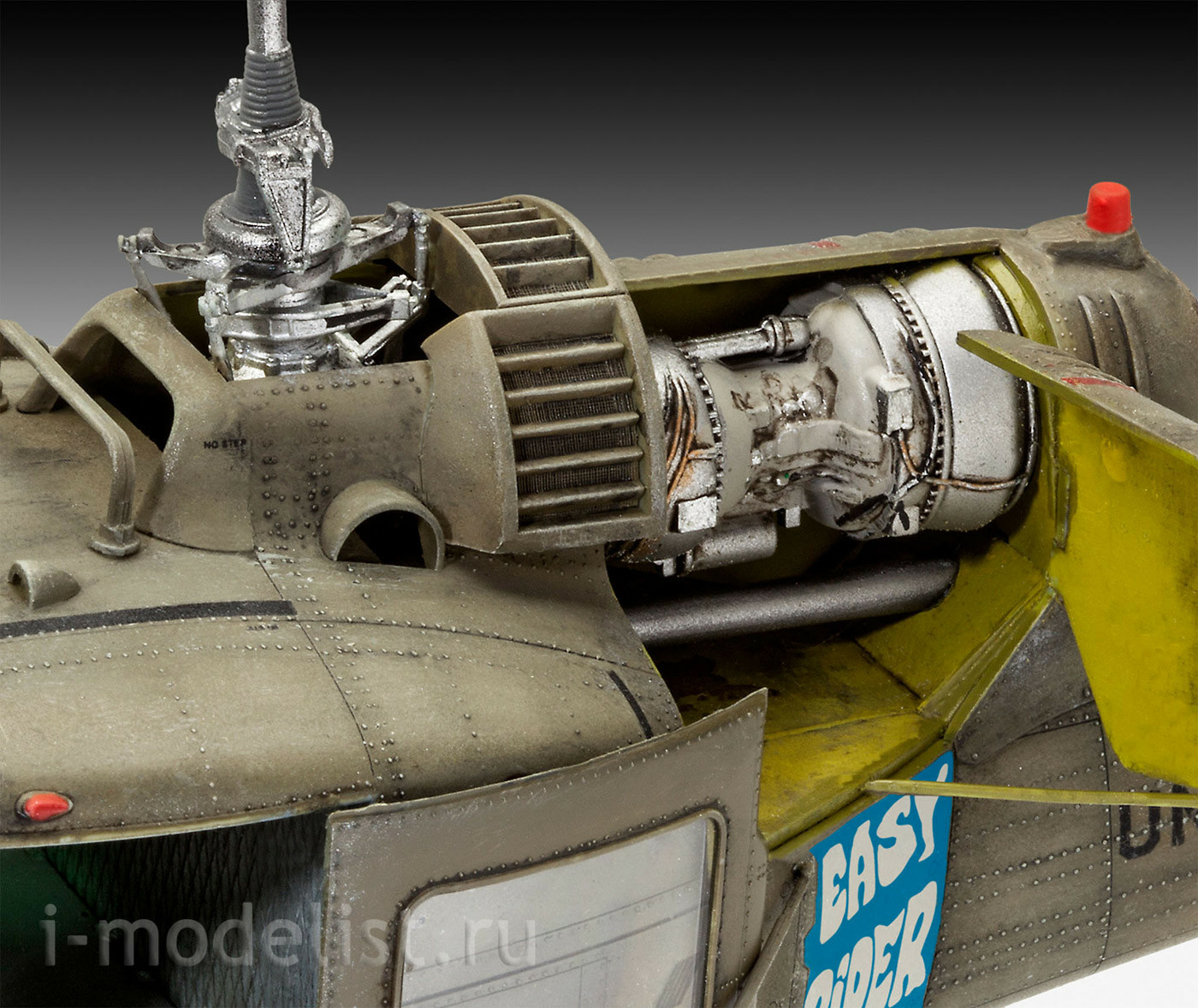

the Power plant consists of one or two turboshaft engines. Gearbox and engine are located on the axis of the helicopter at the top of the fuselage behind the cockpit. Hydraulic, pneumatic and electrical systems of the helicopter are driven by the engine. The helicopter is equipped with a set of navigation and electronic equipment, landing lights and navigation lights.

In the doorways can be installed М60С two machine guns or two machine guns M2HB, or two six-barreled machine gun М134 Minigun (Minigun) of 7.62 mm On an external suspension bracket can be mounted machine guns М60С, М134 controlled missiles: AGM-22, BGM-71 TOW; unguided rocket armament: 7-charging, 19-round 70mm rocket blocks or 24-round 70mm rocket blocks.The nose of the helicopter can be installed 40-mm M75 grenade launcher with 150 or 300 charges, fully controlled by the pilot.
