Additional Information

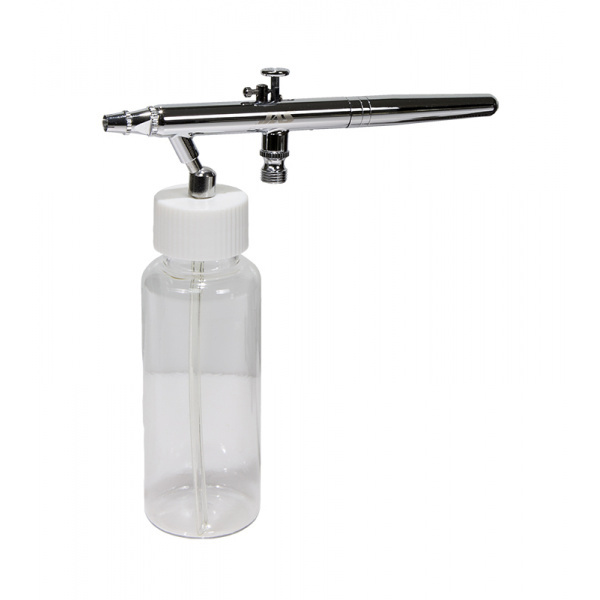

Airbrush for a wide range of applications.
Technical specifications.
control Type: dual, independent
Type of mixing: internal
Feed paint: bottom
nozzle Diameter: 0.3 mm
capacity paint: 100 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes
package includes: the airbrush the container under the paint (1pc x 100 ml), wrench, manual, box, blank warranty card.
Type of mixing: internal
Feed paint: bottom
nozzle Diameter: 0.3 mm
capacity paint: 100 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes
package includes: the airbrush the container under the paint (1pc x 100 ml), wrench, manual, box, blank warranty card.
Airbrush unit: scheme and details:
| 1. | Protective cap |

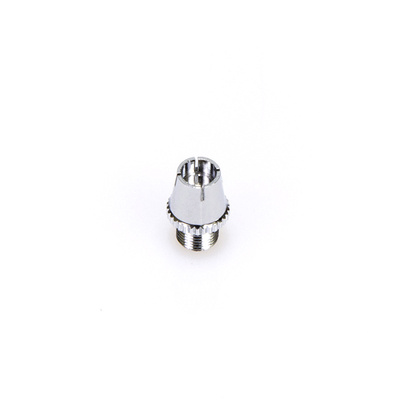

| 2. | Diffuser |

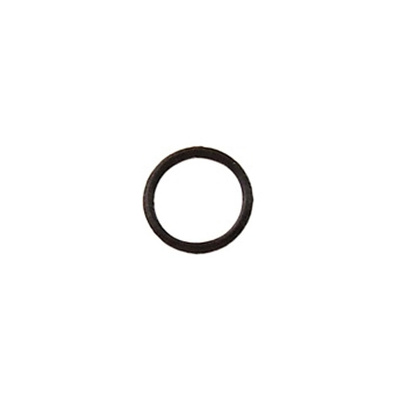

| 3. | Rubber seal |
| 4. | Nozzle |
| 5. | Rubber seal |
| 6. | Body spray< / span> |
| 7. | Rubber seal |
| 8. | Rubber seal |

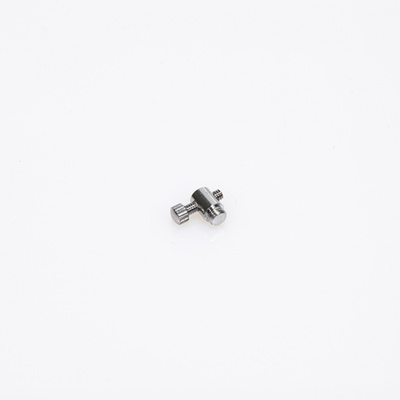

| 9. | paint flow Regulator |
| 10. | Lever< / span> |
| 11. | needle control Lever |
| 12. | needle Gasket |
| 13. | Locking sleeve |
| 14. | Locking sleeve |
| 15. | needle Guide with collet < span> |
| 16. | sleeve Locking screw |
| 17. | needle Return spring |
| 18. | spring Clip |
| 19. | Clamping nut |
| 20. | Needle |
| 21. | Rubber seal |
| 22. | rear Protective cover |
| 23. | Rubber seal |

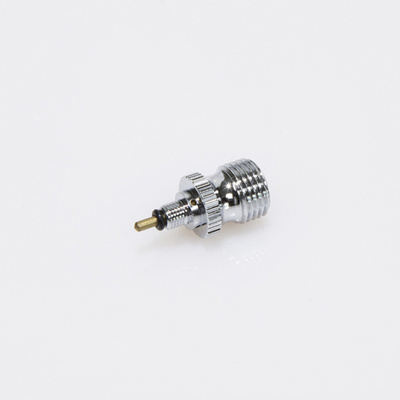

| 24. | Air valve Assembly |
| 25. | Rubber seal |
| 26. | air valve Body |
| 27. | Rubber seal |
| 28. | Air valve |

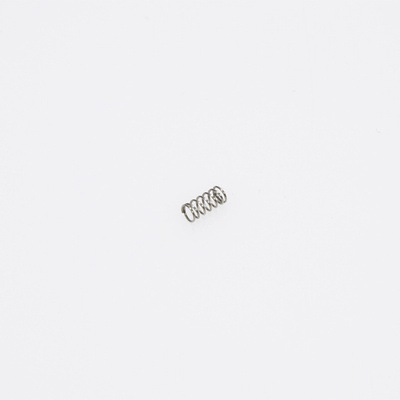

| 29. | air valve Spring |
| 30. | air valve Washer |
| 31. | connector Nut |
| 32. | Rubber seal |
| 33. | Connector |
| 34. | paint Container with lid |
| 35. | Key |
Компрессоры предназначены для аэрографии в toмашних условиях. Not предназначено для использования в промышленных целях (производственных нужд, строительных, ремонтных и fromделочных рабfrom, автосервисов).
