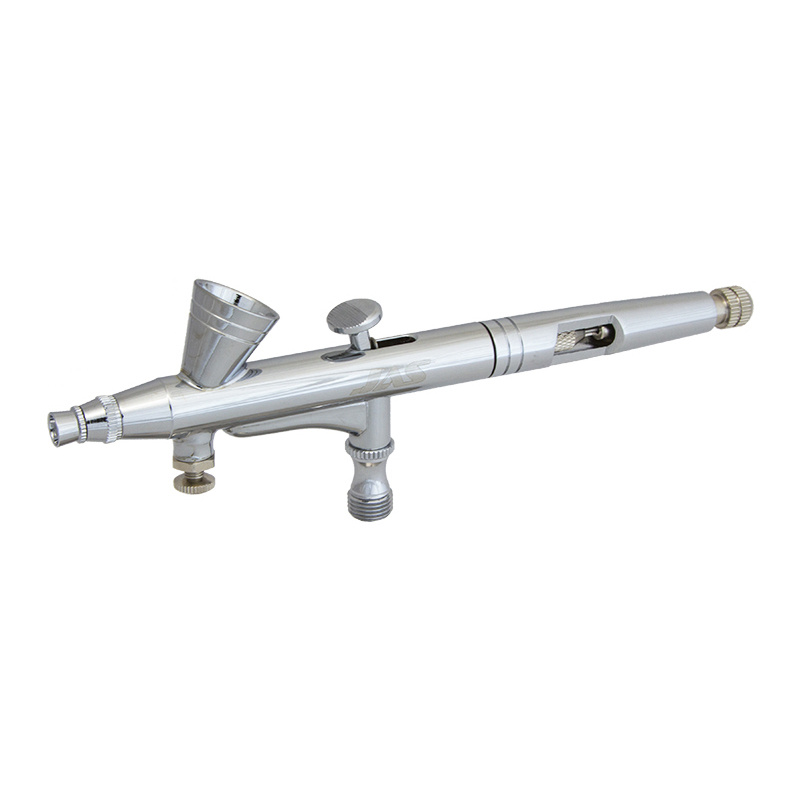

1124 Airbrush JAS wide range of applications

13 $ *

Inform

* price for retail store customers

3 8

Vendor code: 1124

Manufacturer: JAS

Availability: Not available

Additional Information

Airbrush for a wide range of applications. For a small amount of work. The presence of Air control allows you to adjust
the pressure of the supplied air in the airbrush.

Technical specifications.

control Type: dual, independent
Type of mixing: internal
Feed paint: top
nozzle Diameter: 0.2 mm
capacity paint: 2 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes

package includes: airbrush, eyedropper, key, manual, box, blank warranty card.

Airbrush unit: scheme and details:

1. Diffuser
2. diffuser Housing
3. Rubber seal
4. Nozzle
5. Rubber seal
6. paint Tank
7. Lever< / span>
8. needle control Lever
9. needle Gasket
10. Locking sleeve
11. Locking sleeve
12. needle Guide with collet < span>
13. sleeve Locking screw
14. needle Return spring
15. box springs< / span>
16. Clamping nut
17. Needle
18. Rubber seal
19. rear Protective cover
20. paint flow Regulator
21. Rubber seal
22. Air valve Assembly
23. Rubber seal
24. air valve Body
25. Rubber seal
26. Air valve
27. Spring
28. valve Washer
29. Air Control Assembly
30. Rubber seal
31. air Control Housing
32. Rubber seal
33. air Control Adjusting screw
34. connector Nut
35. Rubber seal
36. Connector
37. nozzle change Key
