Additional Information

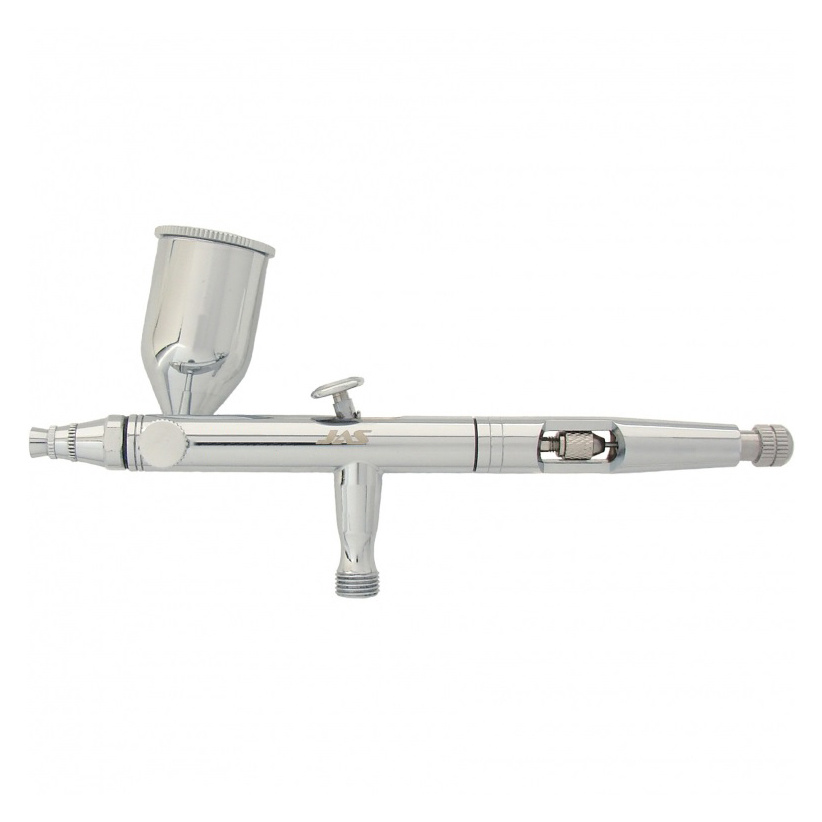

Airbrush for a wide range of applications with
conical nozzle mounting. It allows you to paint at any angle to the
painted surface, as well as select the option of applying paint to the right
or the left side, which allows you to use it as a left-handed and
right-handed.
Technical specifications.
control Type: dual, independent
Type of mixing: internal
Feed paint: top
nozzle Diameter: 0.3 mm
the Volume of containers for paint: 13 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes
package includes: airbrush, container for paint (1 EA. x 13 ml), wrench, manual, box, blank warranty card.
Type of mixing: internal
Feed paint: top
nozzle Diameter: 0.3 mm
the Volume of containers for paint: 13 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes
package includes: airbrush, container for paint (1 EA. x 13 ml), wrench, manual, box, blank warranty card.
Airbrush unit: scheme and details:
| 1. | Diffuser |
| 2. | diffuser Housing |
| 3. | Rubber seal |
| 4. | Nozzle |
| 5. | Rubber seal |
| 6. | Body spray< / span> |
| 7. | Rubber seal |
| 8. | Rubber seal |
| 9. | Lever< / span> |
| 10. | needle control Lever |
| 11. | needle Gasket |
| 12. | Locking sleeve |
| 13. | Locking sleeve |
| 14. | needle Guide with collet < span> |
| 15. | sleeve Locking screw |
| 16. | needle Return spring |
| 17. | box springs< / span> |
| 18. | Clamping nut |
| 19. | Needle |
| 20. | Rubber seal |
| 21. | rear Protective cover |
| 22. | paint flow Regulator |
| 23. | Rubber seal |
| 24. | Air valve Assembly |
| 25. | Rubber seal |
| 26. | air valve Body |
| 27. | Rubber seal |
| 28. | Air valve |
| 29. | Spring |
| 30. | valve Washer |
| 31. | Plug |
| 32. | connector Nut |
| 33. | Rubber seal |
| 34. | Connector |
| 35. | paint tank Cover |
| 36. | paint Container |
| 37. | nozzle change Key |
Компрессоры предназначены для аэрографии в toмашних условиях. Not предназначено для использования в промышленных целях (производственных нужд, строительных, ремонтных и fromделочных рабfrom, автосервисов).
