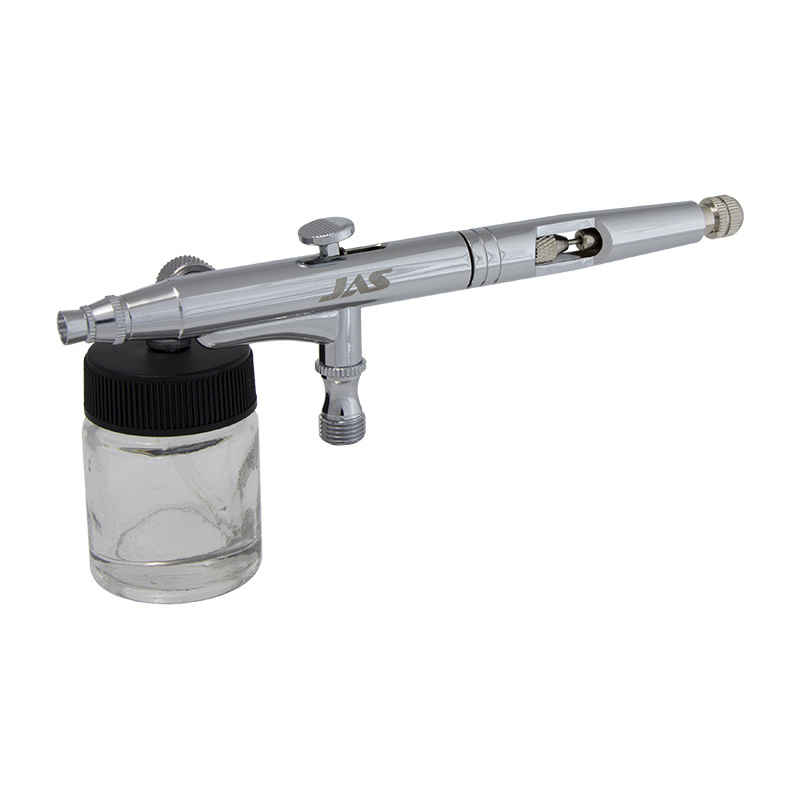

1115 Airbrush JAS wide range of applications, allows you to paint at any angle to the painted surface

14 $ *

* price for retail store customers

3 6

Vendor code: 1115

Manufacturer: JAS

Availability: Are available

Additional Information

Airbrush wide range of applications, allows you to paint at any angle to the painted surface.

Technical specifications.

control Type: dual, independent
Type of mixing: internal
Feed paint: bottom
nozzle Diameter: 0.3 mm
the Volume of the container under the paint: 22 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes

package includes: airbrush, container for paint (quantity 1 x 22 ml), pipette, wrench, manual, box, blank warranty card.

Airbrush unit: scheme and details:

1. Diffuser
2. diffuser Housing
3. Rubber seal
4. Nozzle
5. Rubber seal
6. airbrush Body
7. Lever< / span>
8. needle control Lever
9. needle Gasket
10. Locking sleeve
11. Locking sleeve
12. needle Guide with collet < span>
13. sleeve Locking screw
14. needle Return spring
15. box springs< / span>
16. Clamping nut
17. Needle
18. Rubber seal
19. rear Protective cover
20. paint flow Regulator
21. Rubber seal
22. Air valve Assembly
23. Rubber seal
24. air valve Body
25. Rubber seal
26. Air valve
27. Spring
28. valve Washer
29. connector Nut
30. Rubber seal
31. Connector
32. paint Container with lid
33. nozzle change Key
