Additional Information

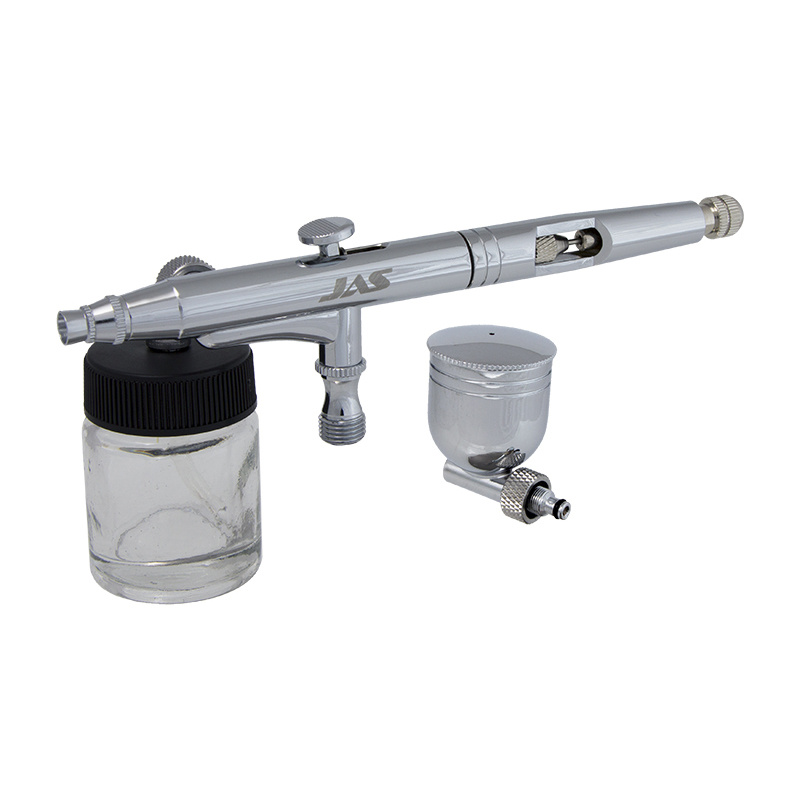

Airbrush wide range of applications. It allows you to paint at any angle to the surface to be painted, as well as choose the option of applying paint.
Technical specifications.
control Type: dual, independent
Type of mixing: internal
paint application: lower, upper
nozzle Diameter: 0.3 mm
capacity paint: 7 ml 22 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes
package includes: airbrush, containers for paint (quantity 1 x 7 ml 1 PCs x 22 ml), pipette, wrench, manual, box, blank warranty card.
Type of mixing: internal
paint application: lower, upper
nozzle Diameter: 0.3 mm
capacity paint: 7 ml 22 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes
package includes: airbrush, containers for paint (quantity 1 x 7 ml 1 PCs x 22 ml), pipette, wrench, manual, box, blank warranty card.
Airbrush unit: scheme and details:
| 1. | Diffuser |
| 2. | diffuser Housing |
| 3. | Rubber seal |
| 4. | Nozzle |
| 5. | Rubber seal |
| 6. | airbrush Body |
| 7. | Lever< / span> |
| 8. | needle control Lever |
| 9. | needle Gasket |
| 10. | Locking sleeve |
| 11. | Locking sleeve |
| 12. | needle Guide with collet < span> |
| 13. | sleeve Locking screw |
| 14. | needle Return spring |
| 15. | box springs< / span> |
| 16. | Clamping nut |
| 17. | Needle |
| 18. | Rubber seal |
| 19. | rear Protective cover |
| 20. | paint flow Regulator |
| 21. | Rubber seal |
| 22. | Air valve Assembly |
| 23. | Rubber seal |
| 24. | air valve Body |
| 25. | Rubber seal |
| 26. | Air valve |
| 27. | Spring |
| 28. | valve Washer |
| 29. | connector Nut |
| 30. | Rubber seal |
| 31. | Connector |
| 32. | paint Container |
| 33. | paint tank Cover |
| 34. | paint Container |
| 35. | Rubber seal |
| 36. | paint container Nut |
| 37. | Rubber seal |
| 38. | nozzle change Key |
Компрессоры предназначены для аэрографии в toмашних условиях. Not предназначено для использования в промышленных целях (производственных нужд, строительных, ремонтных и fromделочных рабfrom, автосервисов).
