Additional Information

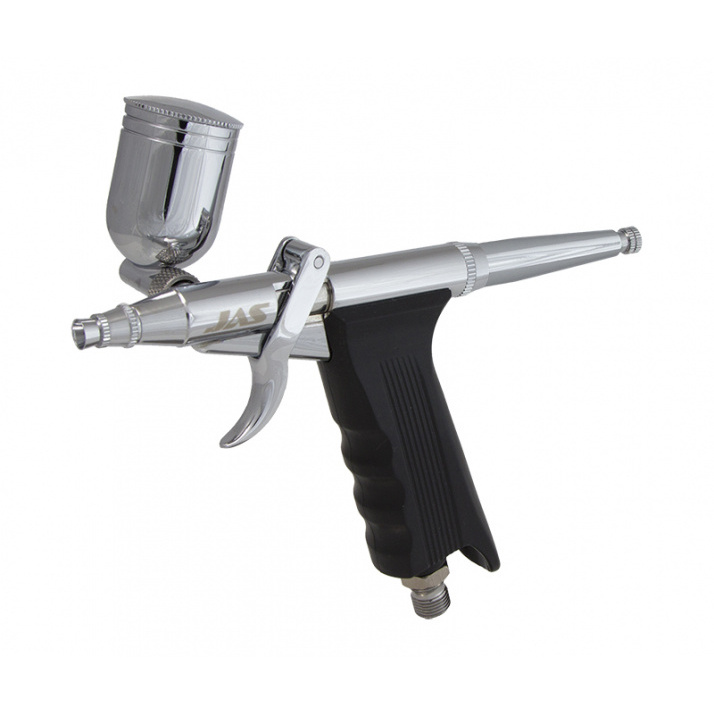

pistol type Airbrush. Allows you to paint at any angle to the surface to be painted.
Technical specifications.
control Type: double, dependent
Type of mixing: internal
paint application: side
nozzle Diameter: 0.3 mm
capacity paint: 7 ml 10 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes
package includes: airbrush, containers for paint (quantity 1 x 7 ml 1 PCs. x 10 ml), wrench, manual, box, blank warranty card.
Type of mixing: internal
paint application: side
nozzle Diameter: 0.3 mm
capacity paint: 7 ml 10 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes
package includes: airbrush, containers for paint (quantity 1 x 7 ml 1 PCs. x 10 ml), wrench, manual, box, blank warranty card.
Airbrush unit: scheme and details:
| 1. | Diffuser |
| 2. | diffuser Housing |
| 3. | Rubber seal |
| 4. | Nozzle |
| 5. | Rubber seal |
| 6. | airbrush Body |
| 7. | control lever Screw |
| 8. | needle Gasket |
| 9. | Locking sleeve |
| 10. | needle Pusher |
| 11. | needle pusher Return spring |
| 12. | Locking sleeve |
| 13. | needle Guide with collet < span> |
| 14. | sleeve Locking screw |
| 15. | Needle |
| 16. | needle Return spring |
| 17. | box springs< / span> |
| 18. | Clamping nut |
| 19. | rear Protective cover |
| 20. | paint flow Regulator |
| 21. | Rubber seal |
| 22. | paint container Nut |
| 23. | Rubber seal |
| 24. | paint Container |
| 25. | paint tank Cover |
| 26. | paint Container |
| 27. | Rubber seal |
| 28. | air valve Pusher |
| 29. | Locking sleeve |
| 30. | Rubber seal |
| 31. | Nut |
| 32. | air valve Body |
| 33. | Rubber seal |
| 34. | Air valve |
| 35. | Spring |
| 36. | Rubber seal |
| 37. | Extension < /td> |
| 38. | Nut |
| 39. | connector Nut |
| 40. | Rubber seal |
| 41. | Connector |
| 42. | nozzle change Key |
| 43. | Handle |
| 44. | control Lever |
Компрессоры предназначены для аэрографии в toмашних условиях. Not предназначено для использования в промышленных целях (производственных нужд, строительных, ремонтных и fromделочных рабfrom, автосервисов).
