Additional Information
Airbrush wide range of applications. The presence of Air control allows you to adjust the pressure of the supplied air in the airbrush.
the
SPECIFICATIONS.
control Type: double, independent
mixing Type: internal
paint Flow: upper
nozzle Diameter: 0.2 mm
the the Volume of the container under the paint: 0.5 ml
Working pressure: 1-3,5 kg/cm2
fitting Size: G1/8"
paint flow Limiter: Yes

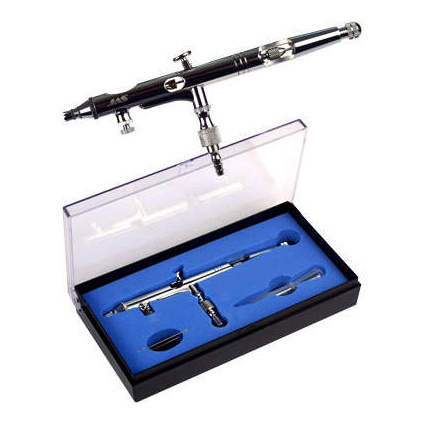

Package contents: airbrush, pipette, key, manual, box, warranty card form.
1. Diffuser 21. Rubber seal
2. The body of the diffuser 22. Rear protective cover
3. Rubber seal 23. Paint flow regulator
4. Nozzle 24. Rubber seal
5. Rubber seal 25. Air valve Assembly
6. The housing of the sprayer 26. Rubber seal
7. Rubber seal 27. Air valve body
8. Rubber seal 28. Rubber seal
9. The body of the airbrush 29. Air valve
10. Control lever 30. Air valve spring
11. Needle control lever 31. Air valve washer
12. Needle gasket 32. Air Control Assembly
13. Locking sleeve 33. Rubber seal
14. Locking sleeve 34. Air Control housing
15. Needle guide with collet clip 35. Rubber seal
16. Sleeve locking screw 36. Air Control adjusting screw
17. Needle return spring 37. Connector nut
18. Spring clip 38. Rubber seal
19. Clamping nut 39. Connector
20. Needle 40. Key
Компрессоры предназначены для аэрографии в toмашних условиях. Not предназначено для использования в промышленных целях (производственных нужд, строительных, ремонтных и fromделочных рабfrom, автосервисов).
