Additional Information

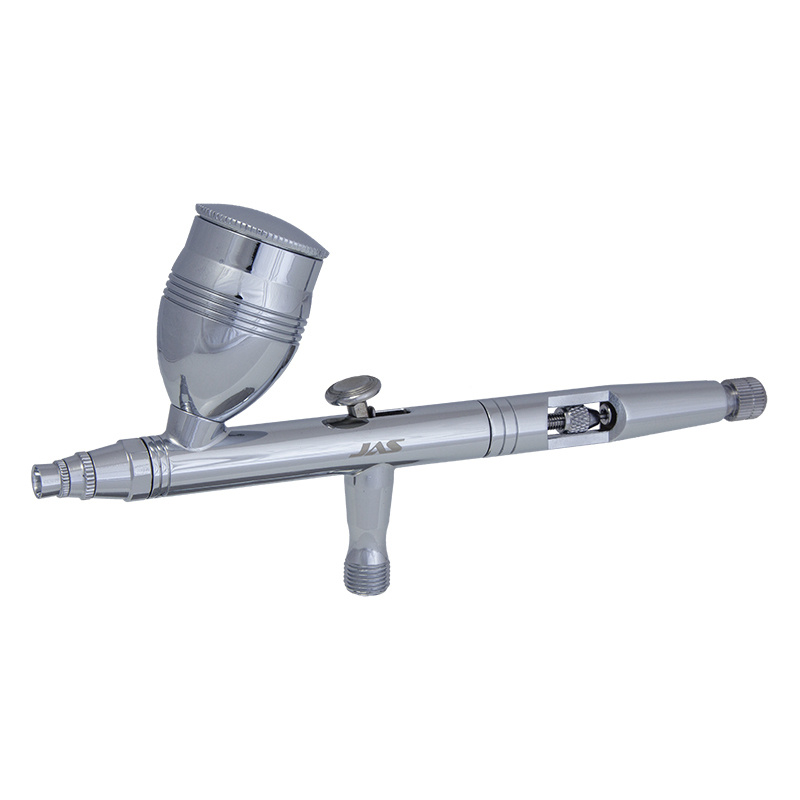

Airbrush for a wide range of applications with
conical nozzle mounting. The presence in the set of interchangeable
containers for paint allows you to produce different amounts of work.
Technical specifications.
control Type: double, independent
mixing Type: internal
paint Supply: upper
nozzle Diameter: 0.3 mm
paint tank Capacity: 2 ml, 5 ml, 13 ml
Operating pressure: 1-3,5 kg/cm2
fitting Size: G1/8"
paint supply Limiter: Yes
Package contents: airbrush, paint containers (1 PC x 2 ml, 1 PC x 5 ml, 1 PC x 13 ml), instructions, box, warranty card form.
mixing Type: internal
paint Supply: upper
nozzle Diameter: 0.3 mm
paint tank Capacity: 2 ml, 5 ml, 13 ml
Operating pressure: 1-3,5 kg/cm2
fitting Size: G1/8"
paint supply Limiter: Yes
Package contents: airbrush, paint containers (1 PC x 2 ml, 1 PC x 5 ml, 1 PC x 13 ml), instructions, box, warranty card form.
Airbrush unit: scheme and details:
| 1. | Diffuser |
| 2. | diffuser Housing |
| 3. | Rubber seal |
| 4. | Body spray< / span> |
| 5. | Rubber seal |
| 6. | Nozzle |
| 7. | Rubber seal |
| 8. | Rubber seal |
| 9. | paint Tank |
| 10. | Lever< / span> |
| 11. | needle control Lever |
| 12. | needle Gasket |
| 13. | Locking sleeve |
| 14. | Locking sleeve |
| 15. | needle Guide with collet < span> |
| 16. | sleeve Locking screw |
| 17. | needle Return spring |
| 18. | box springs< / span> |
| 19. | Clamping nut |
| 20. | Needle |
| 21. | Rubber seal |
| 22. | rear Protective cover |
| 23. | paint flow Regulator |
| 24. | Rubber seal |
| 25. | air valve Body |
| 26. | Rubber seal |
| 27. | Air valve |
| 28. | Spring |
| 29. | valve Washer |
| 30. | connector Nut |
| 31. | Rubber seal |
| 32. | Connector |
| 33. | paint tank Cover |
| 34. | paint Container |
| 35. | paint Container |
| 36. | nozzle change Key |
Компрессоры предназначены для аэрографии в toмашних условиях. Not предназначено для использования в промышленных целях (производственных нужд, строительных, ремонтных и fromделочных рабfrom, автосервисов).
