Additional Information
Technical specifications.
control Type: double, dependent
Type of mixing: internal
Feed paint: top
nozzle Diameter: 0.3 mm
capacity paint: 2 ml, 5 ml, 13 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes

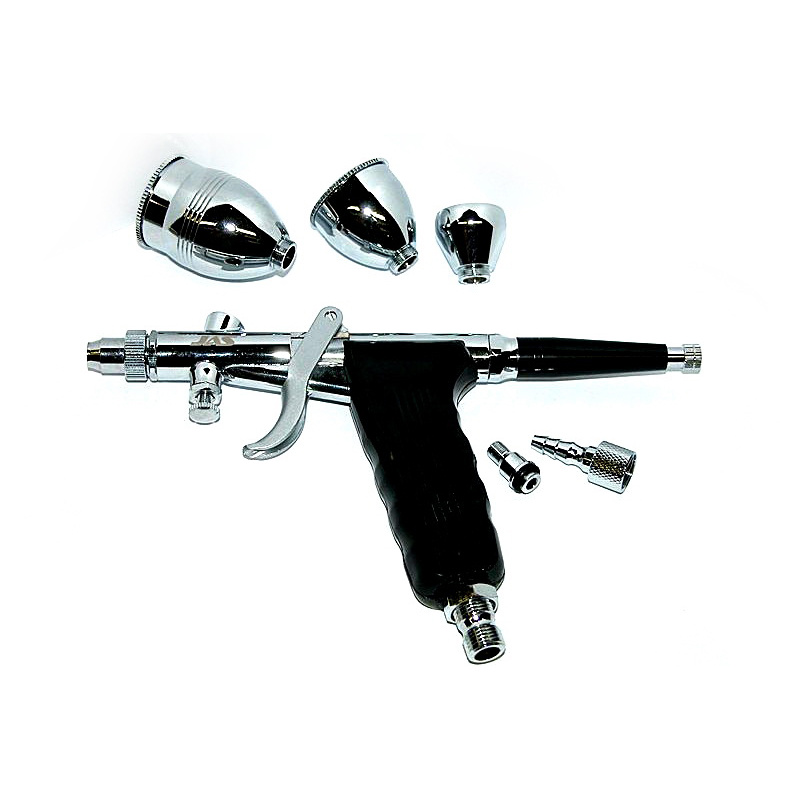

package includes: airbrush, containers for paint (1 PCs x 2 ml, 1 PCs. x 5 ml x 1 x 13 ml), wrench, manual, box, blank warranty card.
Type of mixing: internal
Feed paint: top
nozzle Diameter: 0.3 mm
capacity paint: 2 ml, 5 ml, 13 ml
Working pressure: 1-3. 5 kg/cm2
Size of fitting: G1/8"
the flow Restrictor of paint: Yes
package includes: airbrush, containers for paint (1 PCs x 2 ml, 1 PCs. x 5 ml x 1 x 13 ml), wrench, manual, box, blank warranty card.
Airbrush unit: scheme and details:
| 1. | Diffuser | 25. | Rubber seal |
| 2. | diffuser Housing | 26. | air valve Pusher |
| 3. | Rubber seal | 27. | Locking sleeve |
| 4. | Nozzle | 28. | Rubber seal |
| 5. | Rubber seal | 29. | Nut |
| 6. | Rubber seal | 30. | air valve Body |
| 7. | control lever Screw | 31. | Rubber seal |
| 8. | needle Gasket | 32. | Air valve |
| 9. | Locking sleeve | 33. | air valve Spring |
| 10. | needle Pusher | 34. | Rubber seal |
| 11. | needle pusher Return spring | 35. | Extension < /td> |
| 12. | Locking sleeve | 36. | Nut |
| 13. | needle Guide with collet < span> | 37. | Air Control Assembly |
| 14. | sleeve Locking screw | 38. | Rubber seal |
| 15. | Needle | 39. | air Control Housing |
| 16. | needle Return spring | 40. | Rubber seal |
| 17. | box springs< / span> | 41. | air Control Adjusting screw |
| 18. | Clamping nut | 42. | connector Nut |
| 19. | rear Protective cover | 43. | Rubber seal |
| 20. | paint flow Regulator | 44. | Connector |
| 21. | paint tank Cover | 45. | control Lever |
| 22. | paint Tank | 46. | Handle |
| 23. | paint Container | 47. | Key |
| 24. | paint Tank without cover |
Компрессоры предназначены для аэрографии в toмашних условиях. Not предназначено для использования в промышленных целях (производственных нужд, строительных, ремонтных и fromделочных рабfrom, автосервисов).
